Continuous process monitoring and FE simulation for automated 3D fiber layup

Continuous process monitoring and FE simulation for automated 3D fiber layup

Continuous process monitoring and FE simulation for automated 3D fiber layup

We at Cevotec constantly enhancing and extend the Fiber Patch Placement technology. Shortly after announcing latest developments particularly for the requirements of the aerospace industry, we now have focused on continuous process monitoring and FE simulation for automated 3D fiber layup with Fiber Patch Placement.

Equipped with numerous sensors monitoring all relevant process parameters, Fiber Patch Placement production systems of Cevotec’s SAMBA Series allow for a continuous quality control and monitoring during the production process. Particularly in the aerospace industry, an industry that does not forgive mistakes in manufacturing, the composite parts produced in today’s semi-automated production are subject to individual unit tests to ensure specification compliance and therefore a maximum degree of flight safety. Working with Fiber Patch Placement, sensors of the production system monitor key parameters of the production process: from cutting the patches from a tape spool to pressure-controlled fiber deposition. In particular, a special vision system checks each individual patch for quality and dimensional accuracy before further processing in order to guarantee that 100% of the input material is according to specifications. This reduces the required effort for the final inspection enormously and lowers the non-pass rate of produced parts.

Production data are analyzed and compared with a database of previously processed patches. Deviations can be promptly detected and the system takes appropriate corrective measures fully automated. Incorporating machine learning concepts, the algorithms become more intelligent with each patch processed in the database. On the basis of this data, process tolerance specifications can be minimized, which in turn guarantees a consistently high placement quality. The time and cost required for single unit tests are significantly reduced.

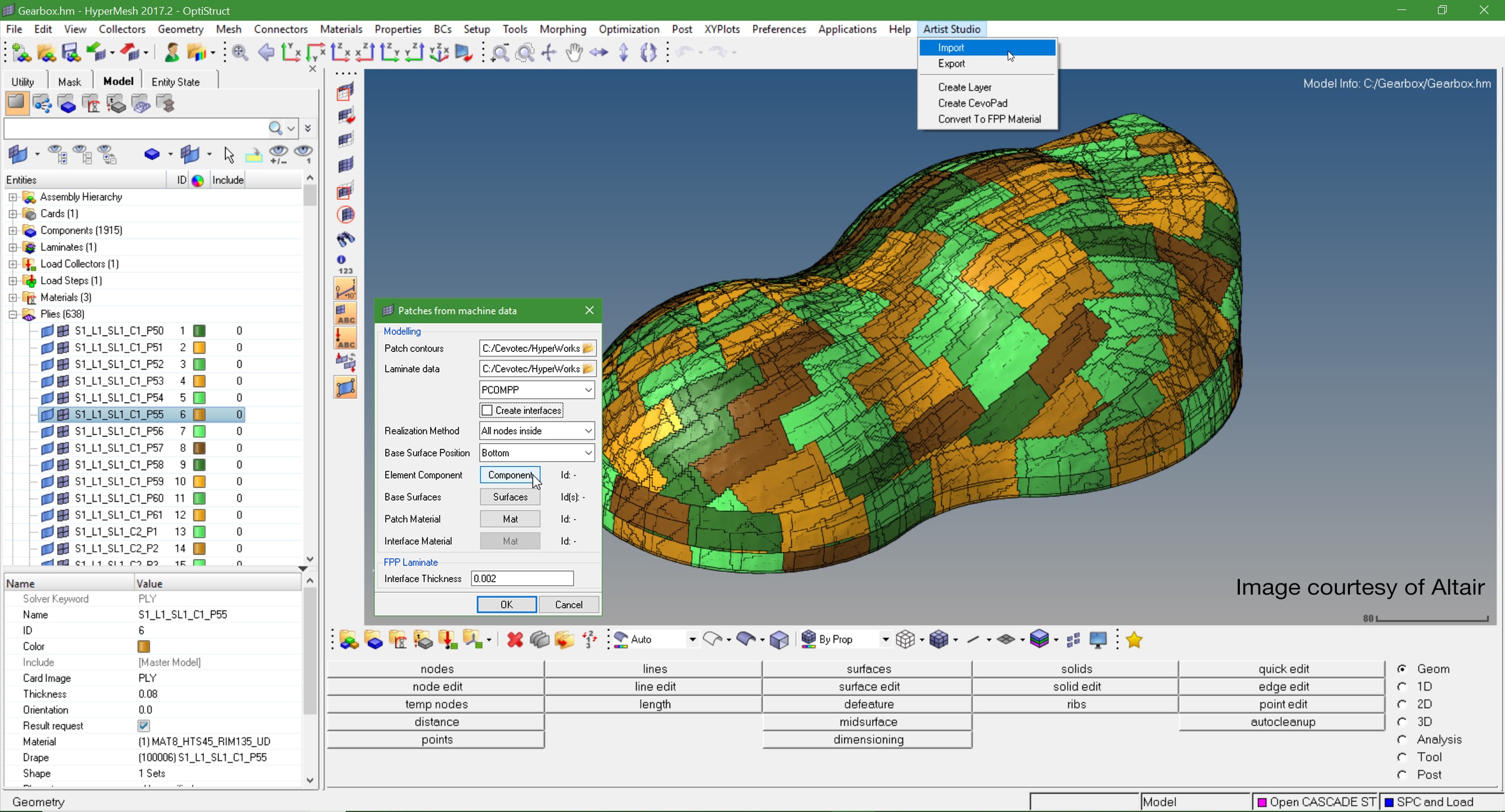

Additional potential to accelerate production and especially development processes offers Cevotec’s latest software extension: A plug-in for the modeling software HyperMesh, one of the leading FEA preprocessors. Based on the data defined in PATCH ARTIST regarding geometry, position and alignment of the patches, the ARTIST STUDIO plug-in automatically generates a detailed image of the patch laminate in HyperMesh. The contour of each individual patch is used to model fiber orientations and overlap areas. Ply-based shell models as well as solid and cohesive zone models can be used for analysis, which can be performed on both sublayer and patch level.

We will present both the sensor-enhanced systems and the ARTIST STUDIO plug-in at Advanced Engineering Show in Birmingham (booth N86) and Composite Europe in Stuttgart (hall 9, booth E60e). All new Fiber Patch Placement features are available towards the end of the year.



About Cevotec:

Cevotec enables manufacturers to build complex fiber composites in high volume and quality – by smart process automation based on Fiber Patch Placement technology. With SAMBA, Cevotec offers customizable, automated fiber lay-up systems for challenging 3D geometries and multi-material laminates with complex fiber orientation. ARTIST STUDIO is the matching CAE software for generating patch-based fiber laminates and automated robot programming. Along with development services that include FE-based modeling and simulation, Cevotec offers the entire process chain from digital design to final fiber product.
